Here are just a few details and specifications of the Space Age fasteners we include in every steering system we sell.
Maximum strength and durability is top priority in everything we do, as it shows here!

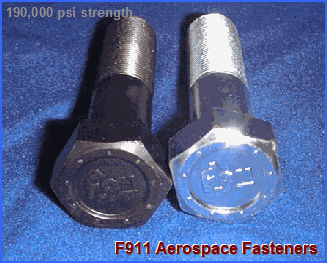

We're always upgrading our Bullet Proof Systems™ at every chance, & have acquired the best in state-of-the-art hardware. The 3/4" Grade-9 F911® 190,000 psi Bolts are stated as the strongest in it's class which is the reason they are used in the Aerospace industry ! The 8640 alloy has 56% more Chromium & 100% more Nickel than other Grade-9 's. Bolt heads are 30% thicker. The smooth shoulder is also extended to provide maximum contact surface to the knuckle/rod end rather than against the threaded portion for a secure fit.
We've also made the ultimate bolt even better! We have contracted that all of these highly specialized F911® bolts and slotted nuts be delivered in their natural un-plated state, where they are then stripped so we can personally control the plating operations ourselves, in order to insure maximum ultimate strength and durability. We add just the right amount of plating thickness to create a specific thread clearance for use with our special grade-5 nuts which result in a natural "lock-nut" interference upon assembly.
Plating depth is controlled to a minimum of no less than .0025" thick throughout. Immediately after the hard bright zinc silver plating process, they are baked for 3 hours at 385 degrees to virtually entirely eliminate any negative effects of potential hydrogen embrittlement as well as stress relieved in a tumbler.
Unlike many other base Grade-9 Bolts that are "hardened" to achieve their strength, the F911® bolt gets it's strength in flexibility of superior materials, and is not brittle like the others.

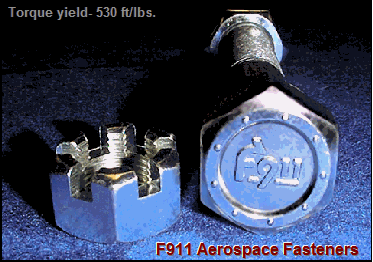

8640 Alloy 0.48 (normal grade-9 = 0.28) 50% more Chromium 0.51 (normal grade-9 = 0.00) 100% more Nickel 716 degrees (F) SAE J-121 38-44 "C" scale 190,000 psi minimum 180,000 psi minimum 530ft/lbs. 30% taller than standard (.600" high) .750-16 Bright Zinc finish .002" minimum Heat treat at 385 degrees (F) for 3 hours Aerospace Industry (not merely just "aircraft!")
MATERIAL - CHROMIUM CONTENT - NICKEL CONTENT - TEMPERING RANGE - DECARBURIZATION - ROCKEWELL HARDNESS - TENSILE STRENGTH - WEDGE TENSILE STRENGTH - TORQUE YIELD - BOLT HEAD HEIGHT - THREAD SIZE & TYPE - PLATING TYPE - PLATING THICKNESS - PLATING TREATMENT - TYPICAL APPLICATION -
Registered to ISO 9000 standards - Information obtained from F911® Bolt Company

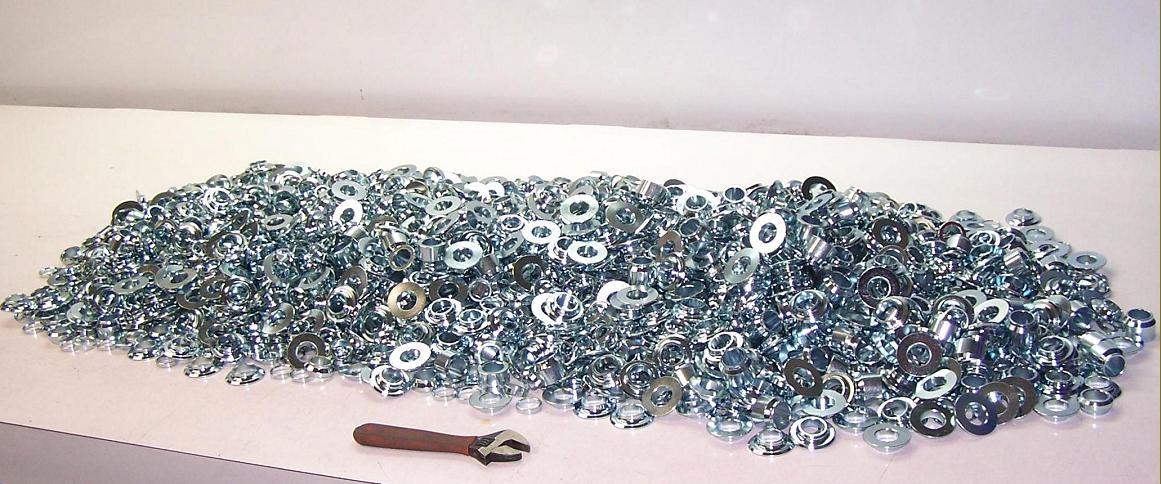

(above) All the Bullet Proof Hardware™ we supply is designed, manufactured and machined in house as well as bright hard zinc plated for a long lasting professional finish with the best functionality, durability and longevity possible. Specs are held to exacting tolerances and the highest quality materials.

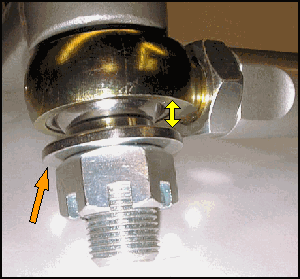

(right) is our Bullet Proof Rod End™ and our unique patended One Piece Retainer Shim™ which is designed to safely contain the rod end assembly and resist it from separating from the rest of the steering system in the rare event of a failure. This safety device *FAR* exceeds the safety of any OEM rod end component in the event of an unforseen rod end separation. And it's included in every one of our Bullet Proof Hardware kits™.

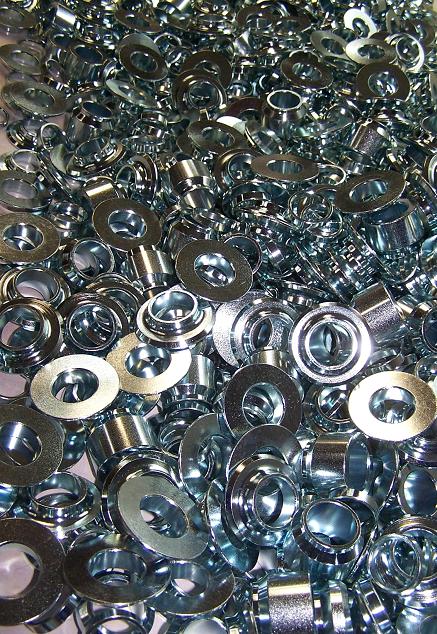

(left) All of our Bullet Proof™ hardware Clearance Shims, Retainer Shims, Separator Bushings, Spacer Sleeves, And Riser Bushings are designed speicifcally for our applications and machined right here in house for maximum strength, durabilty, quality, fit and function. Our hardwared is machined from select premium grade 1045 Alloy Steel which is stress releived, tumbled and shotpeened for superior strength and durability. Then it is coated with a tough layer of zinc-plating to insure long lasting appearance and durability for many years to come.
